Medium
Gases
Device type

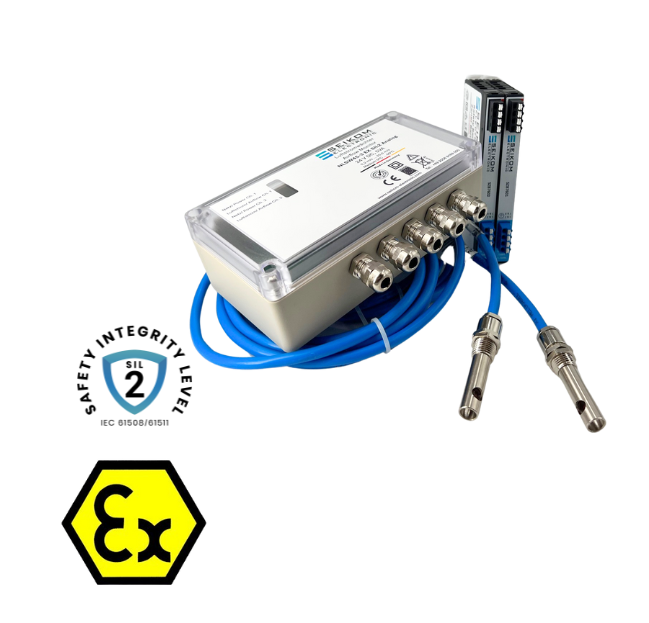

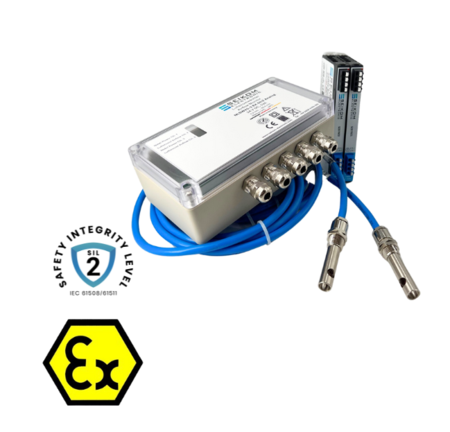

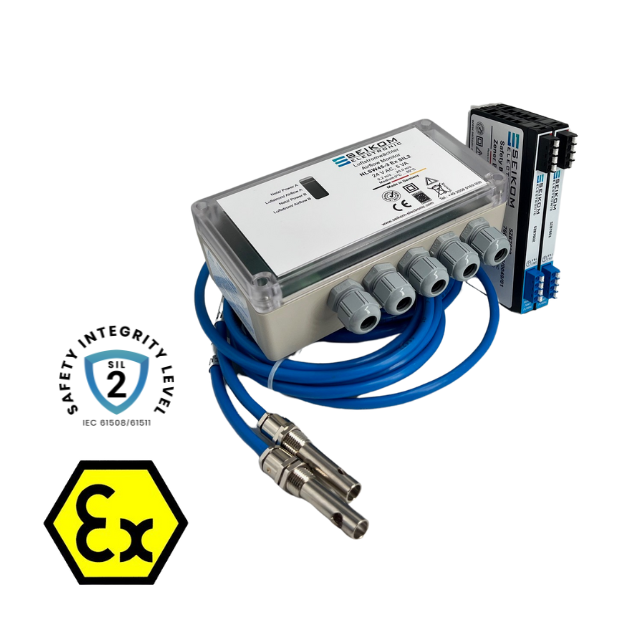

Flow evaluation unit for switch cabinet installation
Flow range
0.1 ... 20 m/s
Medium temperature
0 ... 60°C
Display
LED (voltage & switching point)
Switching point
Stepless adjustment (potentiometer)
Protection class evaluation unit
IP65
Special features
4 Zener barriers included in the scope of delivery, 2 sensors required (SIL2)
Output signal
Switching output, Analog output
Switching output specification
2 changeover contacts (per channel)
Sensor break output signal
Relay drops out
Sensor short-circuit output signal
Relay drops out
Relay output specification
2 changeover contacts (per channel)
Housing material
Polyamide (UL94V-0)
Housing dimensions
85 mm x 165 mm x 55 mm
Mounting
Mounting kit included, Mounting on DIN rail optional, to be mounted outside the ATEX zone
Power supply
24 V DC ±5%, 230 V AC ±5%
Electrical connection
Terminal strip
Max. power consumption
5 VA
Recommended cable cross-section
2.5 mm²
Current and contact rating
250 VAC, 8 A, 2 kVA
Minimum switching capacity
10 mA, 5 V DC
Ambient temperature
-20 ... 50°C
Certificates
CE
ATEX certification
II 3G Ex ic IIC T4 Gc, simple electrical equipment; Zone 1
SIL level
SIL2
Country of origin
Germany
Customs tariff number
90 26 80 20
HS code
90 26 80
